Connect Angular to Drizzle ORM and Planetscale Database

Install Drizzle and planetscale: First, you need to install Drizzle in your project. You can do this by running the following command in your terminal:

npm install drizzle-orm @planetscale/database

Install Drizzlle kit for local development

npm install -D drizzle-kit

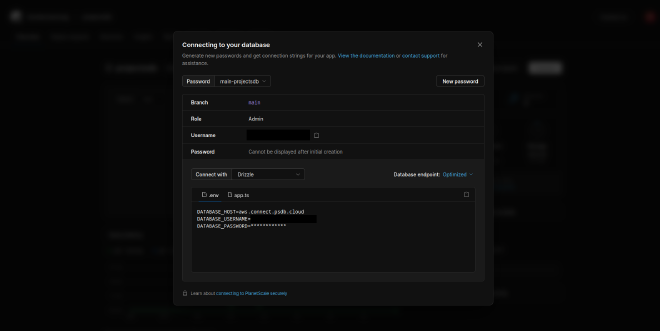

In planet scale select connect and select connect with as drizzle and copy the Database details and paste it in a file .env in your project root folder.

in the same page change the connect with to Node.js copy the Database URL and paste it into the .env file. And Replace *** with your actual password.

In your project root folder create a file with the name drizzle.config.ts.

The s drizzle.config.ts should look like this with the details for the connection and

import type { Config } from 'drizzle-kit';

export default {
schema: './src/db/schema.ts',
out: './drizzle/generated',
driver: 'mysql2',
dbCredentials: {
uri: process.env['DATABASE_URL'] as string,
},
} satisfies Config;

install mysql2 npm package with npm i mysql2.

Now in the package.json file create a script as

"scripts": {
//inside the scripts section
"introspect": "drizzle-kit introspect:mysql"

},

Then Run the following command inside the project

npm run introspect

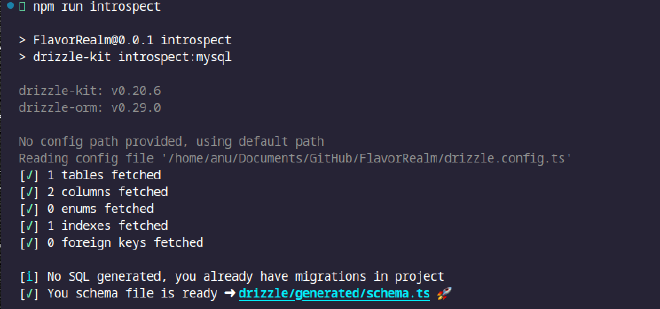

The output should look something like this And Drizzle Is connected to your Angular project.
